Andover Audio: Andover-One SB Turntable Speaker Base

📌 LAB POINTS

• space-saving, audiophile speaker base designed for turntable platform usage; includes Bluetooth aptX HD connectivity

• recommended for medium sized rooms
• bi-amplified 200W power output driving a 6-speaker system
• IsoGroove® Technology eliminates vibration + feedback issues

• 270º panoramic sound dispersion

• built-in MM phono preamp, can be switched off for use w/ turntables that have internal preamps
• EQ adjustments + multiple listening modes available via remote or front-panel control
• 1/4" headphone jack w/ Class-A amplifier on the front
• full array of analog + digital inputs

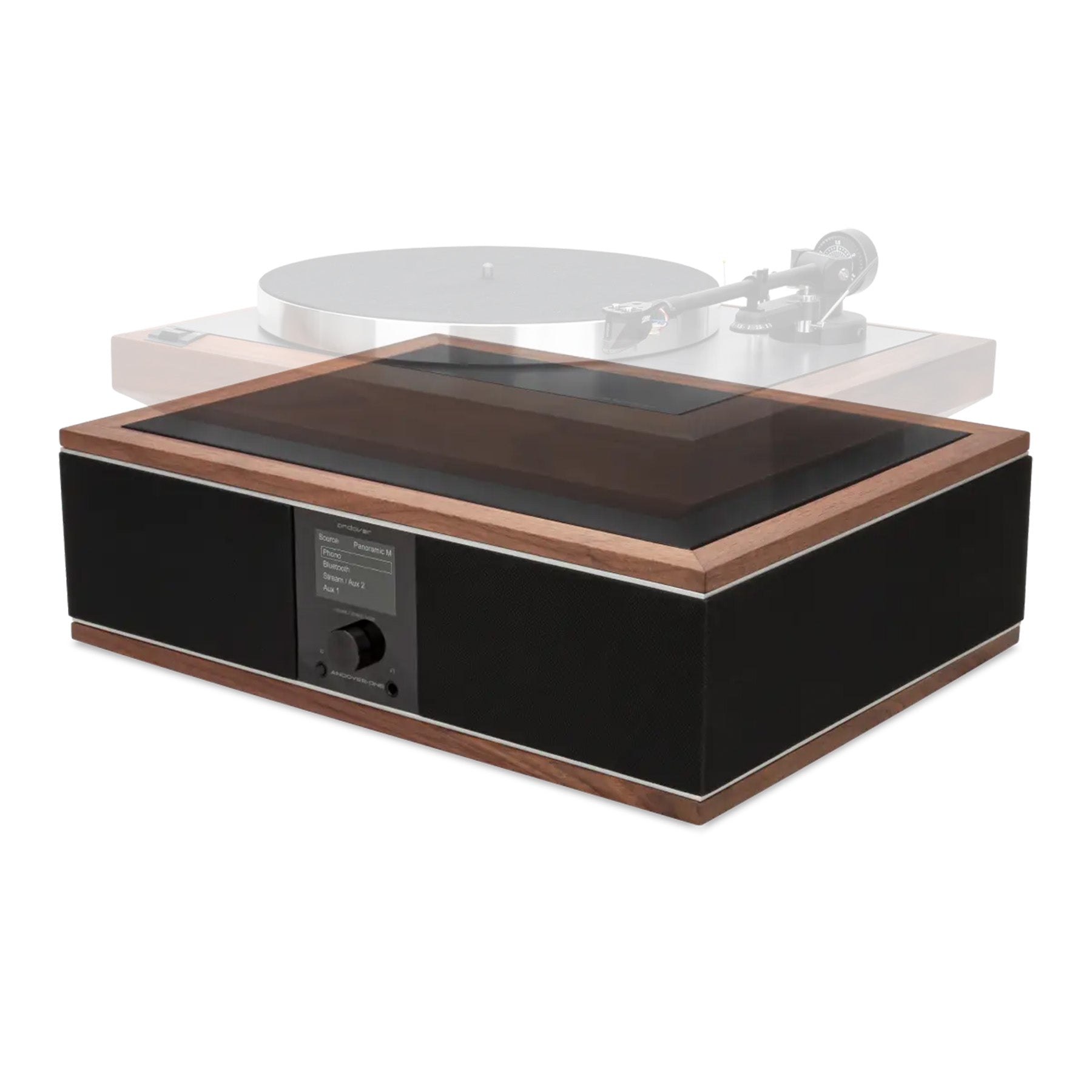

• tempered glass-top as the turntable platform

• furniture-grade hardwood frame encases an MDF chassis for stable playback

ANDOVER-ONE SB vs. SPINBASE MAX 2

• Andover-One SB offers 200W power vs. Spinbase Max 2's 100W
• Andover-One SB uses Air Motion Transformer (AMT) tweeters vs. Spinbase Max 2's silk dome tweeters
• Andover-One SB includes USB output for vinyl recording + computer playback
• Andover-One SB is larger and heavier with its hand-crafted wood + driver configuration

"IsoGroove is an innovative technology that eliminates the age-old issue of turntables creating a feed back loop with speakers. The technology allows Spinbase to be placed directly underneath your turntable, serving as both an elegant platform and wide-range loudspeaker system." - Andover Audio

ISOGROOVE TECHNOLOGY EXPLAINED

• IsoGroove uses (3) main technologies in combination. It was developed by a team that developed components for Cambridge SoundWorks, A/D/S and JBL.
• The first and most significant is the speakers are arrayed such that the basic mechanical vibrations cancel each other.
• The surface was analyzed for vibration patterns. Strategically placed bracing minimize the vibrations even further.
• Lastly, a DSP (digital signal processor) is utilized at low frequencies to ensure that low frequencies are always balanced to provide maximum vibration cancellation regardless of musical content.

🔎 TECH SPECS

• 200W total dual direct drive bi-amplification
• woofer size: (4) 3.5" aluminum diaphragm woofers
• tweeter size: (2) 20 mm Air Motion Transformer (AMT) folded-ribbon tweeters

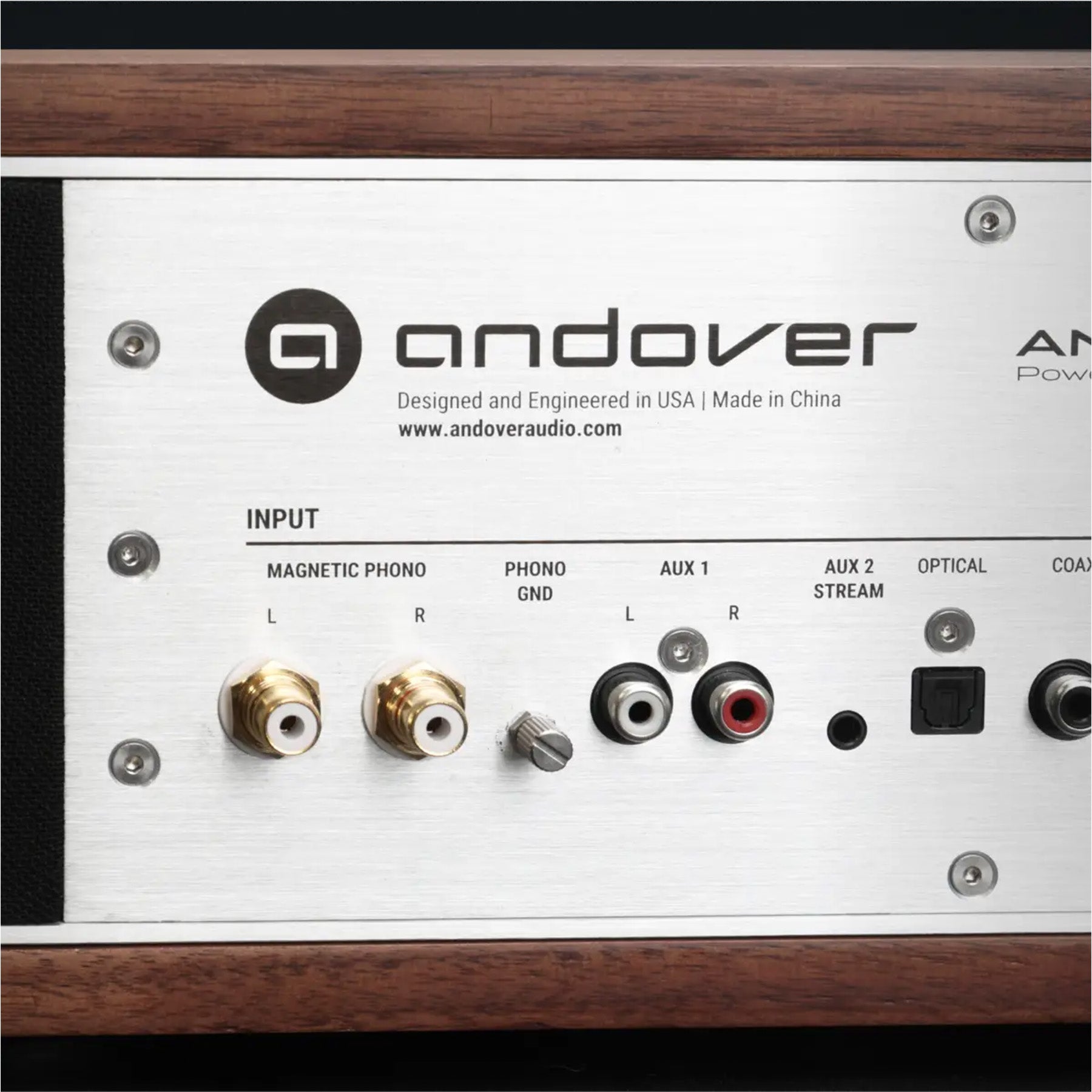

• inputs: phono RCA, line RCA, 3.5mm AUX, USB, 1/4 " headphone jack, optical, coaxial

• frequency range: 50Hz – 20,000Hz
• dimensions: 18"(w) x 13.5"(d) x 5.5"(h) / 457 x 343 x 139 mm


📦 COMES WITH

• RF remote control
• RCA phono cable w/ ground
